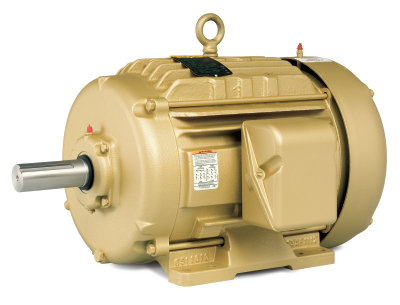

10HP BALDOR 2900RPM D132S TEFC 3PH MOTOR EM13082-58
10HP BALDOR 2900RPM D132S TEFC 3PH MOTOR EM13082-58
Part Number:
EM13082-58Manufacturer:
Baldor Obsolete MotorsManufacturer Part Number:
EM13082-58Click below to request an agent review potential options.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Documentation
Additional Information
| Catalog Number: | EM13082-58 |
| Description: | 7.5KW-10HP,2900RPM,D132S,TEFC,3PH,50HZ,SUPER-E |
| Ship Weight: | 175 lbs. |
| BEARING-DRIVE-END: | 6208 |
| BEARING-OPP-DRIVE-END: | 6206 |
| BLANK-LINE-1: | -- |
| BLANK-LINE-2: | -- |
| DESIGN CODE: | N |
| FL EFFICIENCY: | 90.1 |
| EFFICIENCY-IEC: | -- |
| ENCLOSURE: | TEFC |
| ENCLOSURE-INGRESS-PROT: | 55 |
| FRAME: | D132S |
| CATALOG NUMBER: | EM13082-58 |
| SPEC. NUMBER: | 07J431Y189G1 |
| FL AMPS: | 13.5-13.3 |
| INSULATION-CLASS: | F |
| KVA-CODE: | J |
| METRIC-OUTPUT KW 50HZ: | 7.5KW |
| METRIC-RPM 50HZ: | 2900 |
| MOTOR-WEIGHT: | 80 KG |
| MOUNTING: | B3 |
| PHASE: | 3 |
| POWER-FACTOR-METRIC: | 90 |
| RATING: | 40C AMB-S1 |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.00 |
| VOLTS-METRIC: | 380-415 |
| HERTZ: | 50 |
