50HP BALDOR 1775RPM 326JP TEFC 3PH MOTOR EJPM4115T

Catalog Number:  EJPM4115T
Description:  50HP,1775RPM,326JP,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  646 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
208V AMPS: 122
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6311
CUSTOMER-PART-NUMBER: --
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 94.5
ENCLOSURE: TEFC
FRAME: 326JP
GREASE: POLYREX EM
CATALOG NUMBER: EJPM4115T
SPEC. NUMBER: 12H062X278G2
FL AMPS: 114/57
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1775
OUTPUT [hp]: 50
PHASE: 3
POWER-FACTOR: 87
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
HERTZ: 60

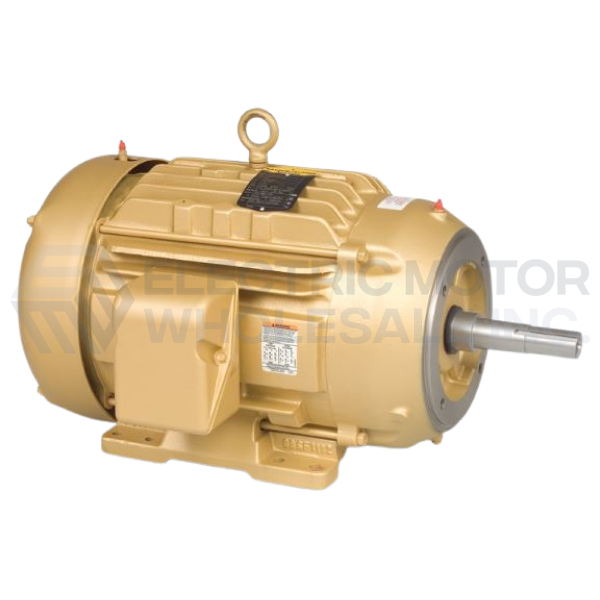

50HP BALDOR 1775RPM 326JP TEFC 3PH MOTOR EJPM4115T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM4115T
Stock # EJPM4115T
Price: $4,100.00
Compare At: $7,585.00
