50HP BALDOR 3540RPM 326JP TEFC 3PH SUPER-E PUMP MOTOR EJPM4114T

50HP BALDOR 3540RPM 326JP TEFC 3PH SUPER-E PUMP MOTOR EJPM4114T

JMTEFC Cast Iron.jpg

Part Number:

EJPM4114T

Model/Spec Number:

12H062Y277G1

Manufacturer:

ABB/Baldor

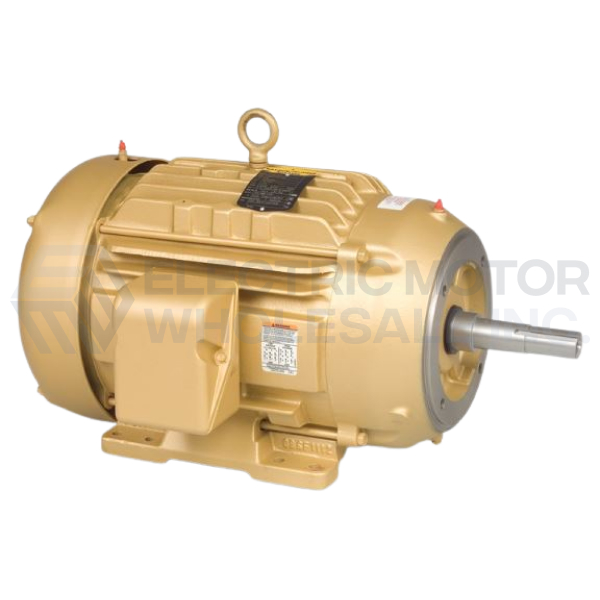

EJPM4114T BALDOR 50HP Three Phase Close-Coupled Pump Motor is designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $12,319.00

Regular Price

USD

$

8,853

25

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

604 lbs

Dimensions:

30 x 40 x 27 inches

HS Code:

8501528040

UPC:

781568479513

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

50

Output KW:

37.3

Output RPM:

3540

Frame Size NEMA:

326JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/460//190/380

EJPM4114T-InfoPacket

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy Duty Cast Iron frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
