25HP BALDOR 3525RPM 284JP TEFC 3PH MOTOR EJPM4107T

Catalog Number:  EJPM4107T
Description:  25HP,3525RPM,284JP,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  349 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
208V AMPS: --
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6208
CUSTOMER-PART-NUMBER: --
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: TEFC
FRAME: 284JM
GREASE: POLYREX EM
HERTZ: 60
CATALOG NUMBER: EJMM4107T
SPEC. NUMBER: 09F823Y147G3
INSULATION-CLASS: F
KVA-CODE: J
MAX. SPACE HEATER TEMP.: --
SPEED [rpm]: 3525
OUTPUT [hp]: 25
PHASE: 3
POWER-FACTOR: 88
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
FL AMPS: 58/29

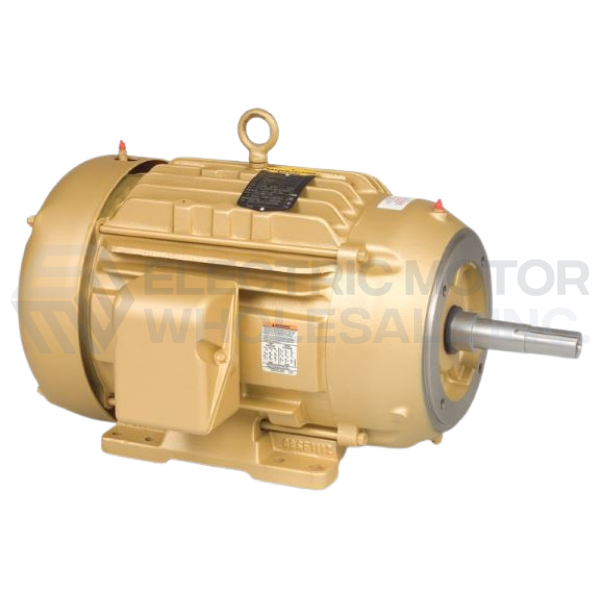

25HP BALDOR 3525RPM 284JP TEFC 3PH MOTOR EJPM4107T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM4107T
Stock # EJPM4107T
Price: $2,138.00
Compare At: $3,955.00
