25HP BALDOR 1770RPM 284JP TEFC 3PH MOTOR EJPM4103T

Catalog Number:  EJPM4103T
Description:  25HP,1770RPM,284JP,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  412 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
208V AMPS: 63.3
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6309
CUSTOMER-PART-NUMBER: --
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 93.6
ENCLOSURE: TEFC
FRAME: 284JP
GREASE: POLYREX EM
HERTZ: 60
CATALOG NUMBER: EJPM4103T
SPEC. NUMBER: 10E381X209G6
INSULATION-CLASS: F
KVA-CODE: G
MAX. SPACE HEATER TEMP.: --
SPEED [rpm]: 1770
OUTPUT [hp]: 25
PHASE: 3
POWER-FACTOR: 84
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
FL AMPS: 60/30

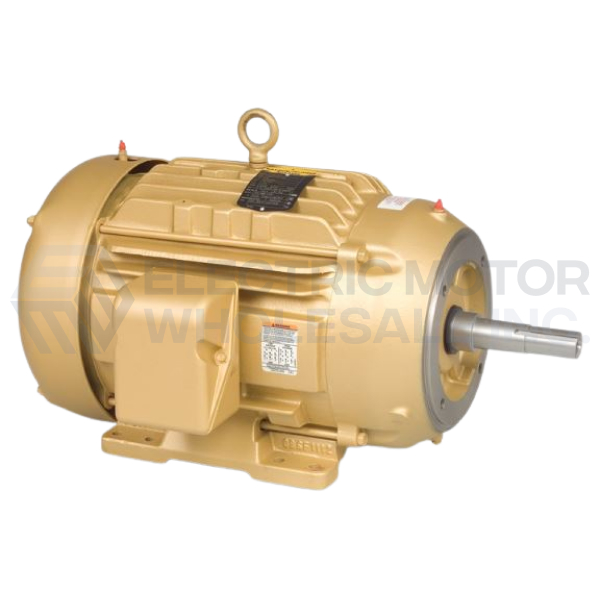

25HP BALDOR 1770RPM 284JP TEFC 3PH MOTOR EJPM4103T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM4103T
Stock # EJPM4103T
Price: $2,215.00
Compare At: $4,097.00
