10HP BALDOR 1770RPM 215JP OPSB 3PH MOTOR EJPM3313T

Catalog Number:  EJPM3313T
Description:  10HP,1770RPM,215JP,OPSB,3PH,60HZ,SUPER-E
Ship Weight:  138 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
  • Three year warranty
SPEC. NUMBER: 37F810T853G1
CATALOG NUMBER: EJPM3313T
FL AMPS: 26-25/12.5
208V AMPS: 26
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: OPSB
FRAME: 215JP
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: H
SPEED [rpm]: 1770
OUTPUT [hp]: 10
PHASE: 3
POWER-FACTOR: 82
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

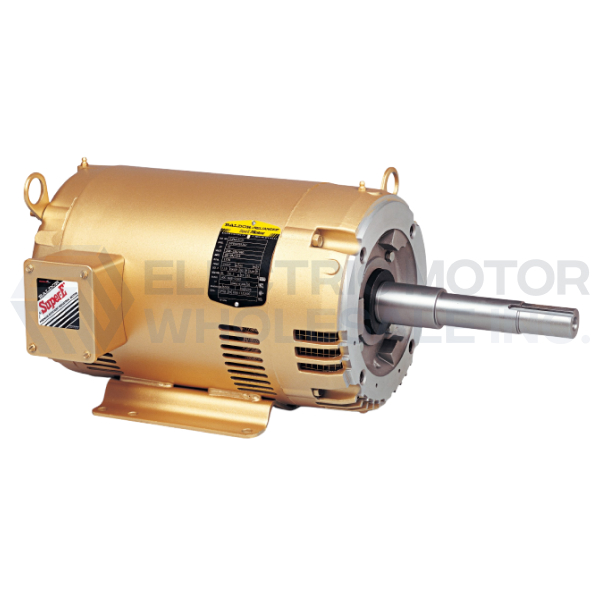

10HP BALDOR 1770RPM 215JP OPSB 3PH MOTOR EJPM3313T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM3313T
Stock # EJPM3313T
Price: $918.00
Compare At: $1,698.00
