30HP BALDOR 1775RPM 286JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2535T

30HP BALDOR 1775RPM 286JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2535T

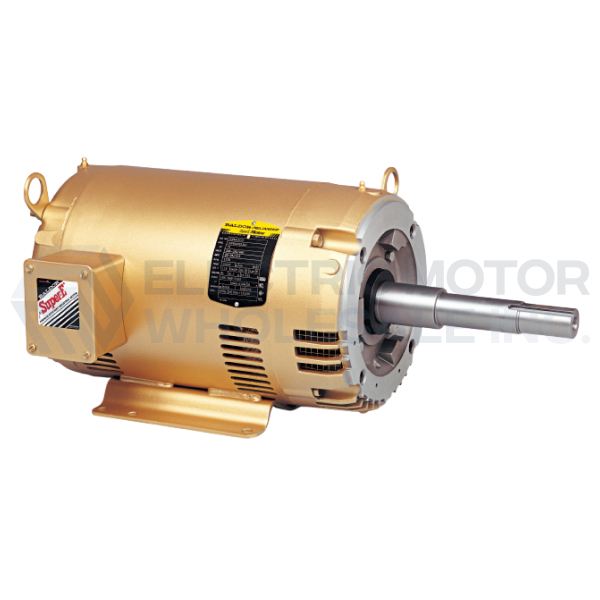

Picture is for reference only.

Part Number:

EJPM2535T

Model/Spec Number:

40E210X339

Manufacturer:

ABB/Baldor
EJPM2535T BALDOR 30HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $7,110.00

Regular Price

USD

$

5,109

72

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

370 lbs

Dimensions:

26 x 36 x 24 inches

HS Code:

8501528040

UPC:

781568479421

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

30

Output KW:

22

Output RPM:

1775

Frame Size NEMA:

286JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460//190/380

EJPM2535T-InfoPacket

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
