20HP BALDOR 1765RPM 256JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2515T

20HP BALDOR 1765RPM 256JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2515T

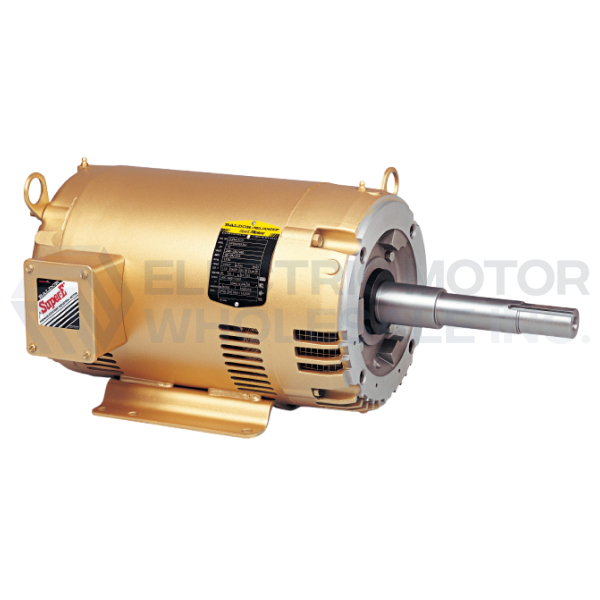

Picture is for reference only.

Part Number:

EJPM2515T

Model/Spec Number:

39-0000-0383

Manufacturer:

ABB/Baldor
EJPM2515T BALDOR 20HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $4,953.00

Regular Price

USD

$

3,559

56

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

236 lbs

Dimensions:

22 x 36 x 20 inches

HS Code:

8501524000

UPC:

781568479414

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

20

Output KW:

15

Output RPM:

1765

Frame Size NEMA:

256JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460//190/380

EJPM2515T-InfoPacket

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
