20HP BALDOR 3525RPM 254JP OPSB 3PH MOTOR EJPM2514T

Catalog Number:  EJPM2514T
Description:  20HP,3525RPM,254JP,OPSB,3PH,60HZ
Ship Weight:  220 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
  • Three year warranty
SPEC. NUMBER: 39K061W638G2
CATALOG NUMBER: EJPM2514T
FL AMPS: 47/23.5
208V AMPS: --
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: OPSB
FRAME: 254JP
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: F
SPEED [rpm]: 3525
OUTPUT [hp]: 20
PHASE: 3
POWER-FACTOR: 88
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

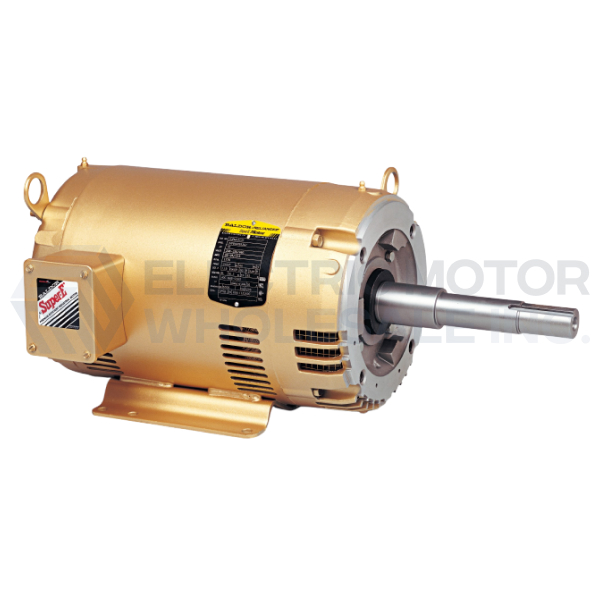

20HP BALDOR 3525RPM 254JP OPSB 3PH MOTOR EJPM2514T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM2514T
Stock # EJPM2514T
Price: $1,623.00
Compare At: $2,793.00
