20HP BALDOR 1765RPM 256JP TEFC 3PH MOTOR EJPM2334T

Catalog Number:  EJPM2334T
Description:  20HP,1765RPM,256JP,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  300 lbs.

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
SPEC. NUMBER: 09P028Y583G1
CATALOG NUMBER: EJPM2334T
FL AMPS: 48/24
208V AMPS: 51
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 93
ENCLOSURE: TEFC
FRAME: 256JP
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1765
OUTPUT [hp]: 20
PHASE: 3
POWER-FACTOR: 84
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

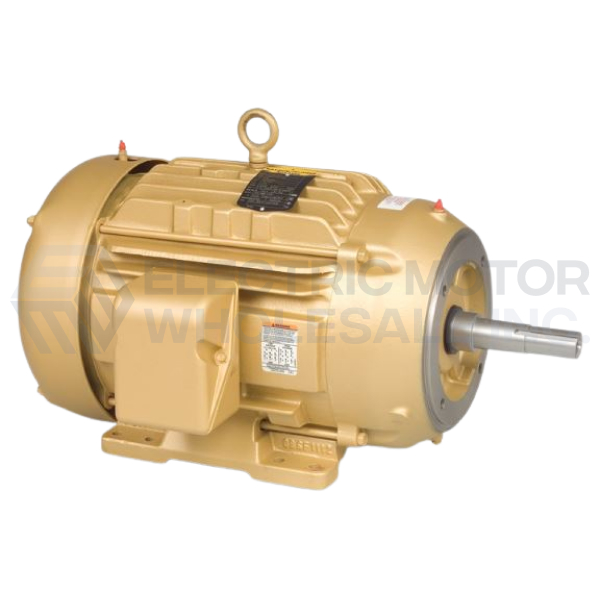

20HP BALDOR 1765RPM 256JP TEFC 3PH MOTOR EJPM2334T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EJPM2334T
Stock # EJPM2334T
Price: $1,881.00
Compare At: $3,480.00
Quantity:
