30HP BALDOR 1770RPM 286JM TEFC 3PH SUPER-E PUMP MOTOR EJMM4104T
30HP BALDOR 1770RPM 286JM TEFC 3PH SUPER-E PUMP MOTOR EJMM4104T

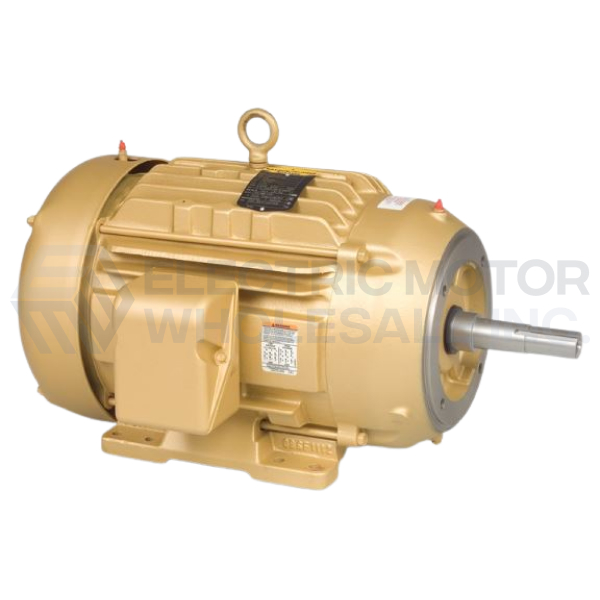

Picture is for reference only.
Part Number:
EJMM4104TModel/Spec Number:
10E380Y758G1Manufacturer:
ABB/BaldorMSRP: $9,541.00
Regular Price
USD
$
6,856
80
Shipping Details
Free No Rush Shipping
Weight:
422 lbsDimensions:
28 x 35 x 24 inchesHS Code:
8501528040UPC:
781568394915Technical Details
Specifications
Brand: | Baldor |
Application: | Closed Coupled |
Output HP: | 30 |
Output KW: | 22 |
Output RPM: | 1770 |
Frame Size NEMA: | 286JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP44 |
Voltage: | 230/460//190/380 |
Documentation
Additional Information
APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
FEATURES:
- Super-E Premium Efficient Motor
- Heavy Duty Cast Iron frame
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Over-sized ball bearings with locked drive end construction to minimize endplay
- Low-loss electrical grade lamination steel
- Three year warranty
