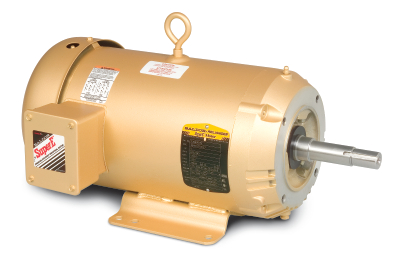

5HP BALDOR 3470RPM 184JM TEFC 3PH SUPER-E PUMP MOTOR EJMM3613T

5HP BALDOR 3470RPM 184JM TEFC 3PH SUPER-E PUMP MOTOR EJMM3613T

JMTEFC Rolled Steel.jpg

Part Number:

EJMM3613T

Model/Spec Number:

36H017Q043G1

Manufacturer:

ABB/Baldor
EJMM3613T BALDOR 5HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $2,032.00

Regular Price

USD

$

1,460

33

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

79 lbs

Dimensions:

19 x 26 x 18 inches

HS Code:

8501524000

UPC:

781568394854

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

5

Output KW:

3.7

Output RPM:

3470

Frame Size NEMA:

184JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230/460//190/380

EJMM3613T-InfoPacket

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frame
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
