EJMM3555T BALDOR 2HP MOTOR

Need Help? Need a quote?

Home > Electric Motors > ELECTRIC MOTORS THREE PHASE > Baldor Three Phase Electric Motors > Baldor Three Phase Pump Frame Electric Motors > Baldor Three Phase Premium TEFC Close-Coupled Pump Frame Motors > 2HP BALDOR 3490RPM 145JM TEFC 3PH MOTOR EJMM3555T

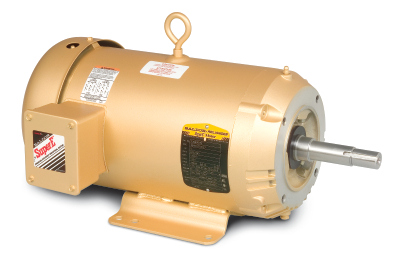

2HP BALDOR 3490RPM 145JM TEFC 3PH MOTOR EJMM3555T

Catalog Number:	EJMM3555T
Description:	2HP,3490RPM,145JM,TEFC,3PH,60HZ,SUPER-E
Ship Weight:	47 lbs.

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

Super-E Premium Efficient Motor
Heavy gauge steel frames
Moisture resistant ISR® (Inverter Spike Resistant) copper windings
Over-sized ball bearings with locked drive end construction to minimize endplay
Low-loss electrical grade lamination steel
Three year warranty

SPEC. NUMBER:	35TT921M774G1
CATALOG NUMBER:	EJMM3555T
FL AMPS:	5.3-5/2.5
208V AMPS:	--
BEARING-DRIVE-END:	6206
BEARING-OPP-DRIVE-END:	6203
DESIGN CODE:	B
DOE-CODE:	010A
FL EFFICIENCY:	85.5
ENCLOSURE:	TEFC
FRAME:	145JM
HERTZ:	60
INSULATION-CLASS:	F
KVA-CODE:	M
SPEED [rpm]:	3490
OUTPUT [hp]:	2
PHASE:	3
POWER-FACTOR:	88
RATING:	40C AMB-CONT
SERIAL-NUMBER:	--
SERVICE FACTOR:	1.15
VOLTAGE:	208-230/460
