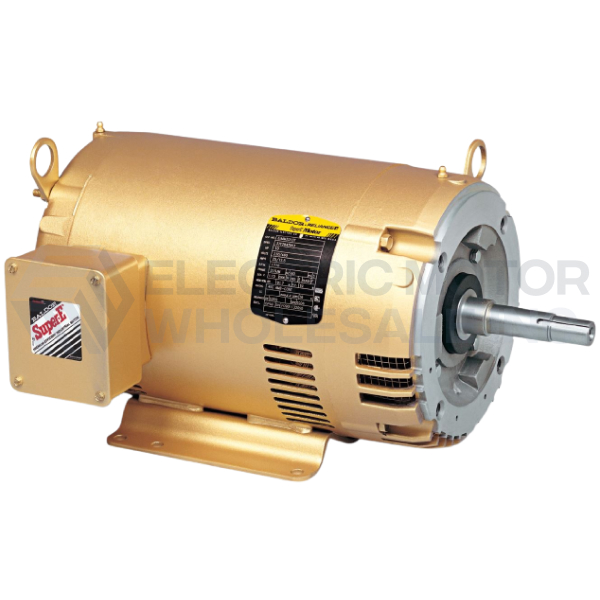

25HP BALDOR 3515RPM 256JM OPSB 3PH MOTOR EJMM2516T
Catalog Number: | EJMM2516T |
Description: | 25HP,3515RPM,256JM,OPSB,3PH,60HZ,SUPER-E |
Ship Weight: | 219 lbs. |
APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
FEATURES:
- Super-E Premium Efficient Motor
- Heavy gauge steel frames
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Over-sized ball bearings with locked drive end construction to minimize endplay
- Low-loss electrical grade lamination steel
- Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
- Three year warranty
SPEC. NUMBER: | 39K062X424G1 |
CATALOG NUMBER: | EJMM2516T |
FL AMPS: | 56/28 |
208V AMPS: | 62 |
BEARING-DRIVE-END: | 6309 |
BEARING-OPP-DRIVE-END: | 6208 |
DESIGN CODE: | B |
DOE-CODE: | 010A |
FL EFFICIENCY: | 91.7 |
ENCLOSURE: | OPSB |
FRAME: | 256JM |
HERTZ: | 60 |
INSULATION-CLASS: | F |
KVA-CODE: | G |
SPEED [rpm]: | 3515 |
OUTPUT [hp]: | 25 |
PHASE: | 3 |
POWER-FACTOR: | 89 |
RATING: | 40C AMB-CONT |
SERIAL-NUMBER: | -- |
SERVICE FACTOR: | 1.15 |
VOLTAGE: | 230/460 |
