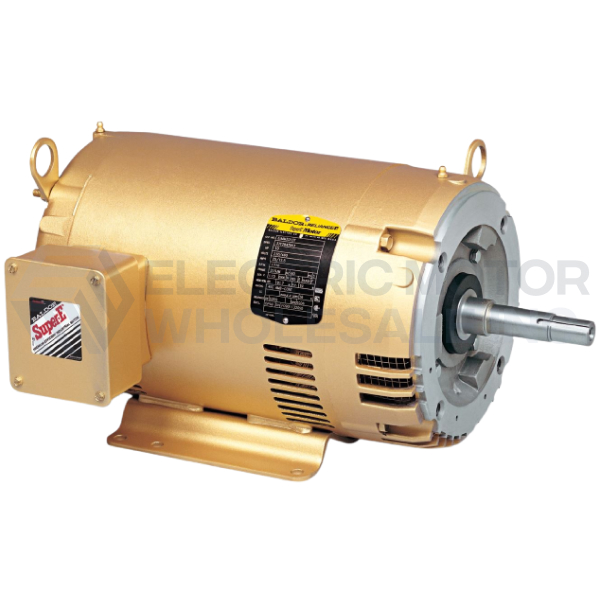

20HP BALDOR 3510RPM 254JM OPSB 3PH SUPER-E PUMP MOTOR EJMM2514T

20HP BALDOR 3510RPM 254JM OPSB 3PH SUPER-E PUMP MOTOR EJMM2514T


Part Number:

EJMM2514T

Model/Spec Number:

39-0000-0372

Manufacturer:

ABB/Baldor
EJMM2514T BALDOR 20HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $4,599.00

Regular Price

USD

$

3,305

15

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

185 lbs

Dimensions:

22 x 32 x 20 inches

HS Code:

8501524000

UPC:

781568138137

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

20

Output KW:

15

Output RPM:

3510

Frame Size NEMA:

254JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460//190/380

EJMM2514T-InfoPacket

APPLICATIONS: Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
