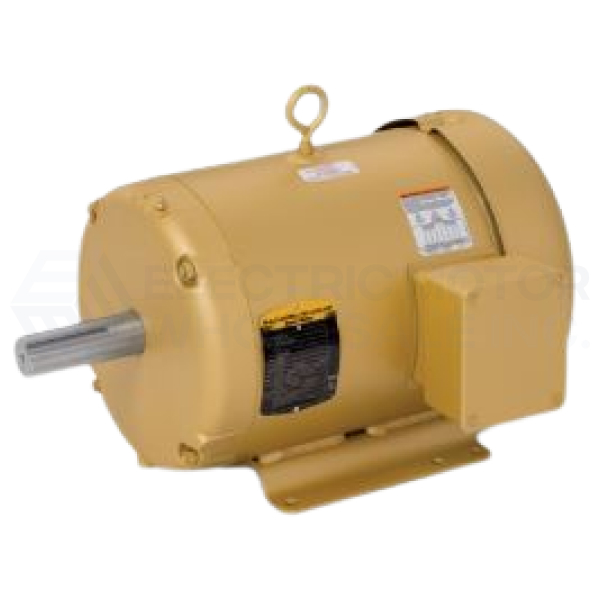

10HP BALDOR 1770RPM 215T TEFC F2 3PH SUPER-E MOTOR EFM3714T
10HP BALDOR 1770RPM 215T TEFC F2 3PH SUPER-E MOTOR EFM3714T
Product Overview
EFM3714T BALDOR 10HP Three Phase Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. The Super-E Motors are designed to conserve energy over extended time periods.Part Number:
EFM3714TModel/Spec Number:
37G863L865G1Manufacturer:
ABB/BaldorTechnical Details
Specifications
Brand | Baldor |
Application | General Purpose |
Output HP | 10 |
Output KW | 7.5 |
Output RPM | 1770 |
Frame Size NEMA | 215T |
Documentation
Additional Information
APPLICATIONS: Designed for typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods.
FEATURES:
- Class F insulated
- 1.15 service factor
- Inverter rated per NEMA MG1 Part 31.4.4.2
- Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
Related Items
Automation Products
Replacement Parts
MSRP: $2,465.00
