400HP BALDOR 3600RPM 449TS TEFC 3PH MOTOR ECP44402T-4

Catalog Number:  ECP44402T-4
Description:  400HP,3600RPM,449TS,TEFC,3PH,60/50HZ,CHEM DUTY,PREMIUM
Ship Weight:  3149 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
AMBIENT-TEMPERATURE: 40
FL AMPS: 421
BEARING-DRIVE-END: 6313
BEARING-OPP-DRIVE-END: 6313
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 96.2
EFFICIENCY-1: 96.3
EFFICIENCY-2: 95.8
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP44402T-4
FRAME: 449TS
HERTZ: 60
HORSEPOWER: 400
INSULATION CLASS: F
KVA-CODE: F
SPEED [rpm]: 3570
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 91.6
POWER-FACTOR-CORRECTION CAPAC: 33.0
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPEC. NUMBER: P44G5916
TYPE: P
VOLTAGE: 460

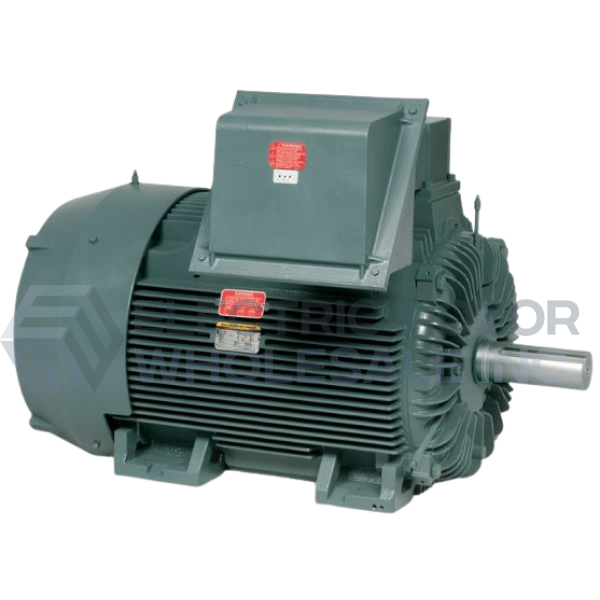

400HP BALDOR 3600RPM 449TS TEFC 3PH MOTOR ECP44402T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP44402T-4
Stock # ECP44402T-4
Price: $39,768.00
Compare At: $75,034.00
Quantity:
