250HP BALDOR 3600RPM 449TS TEFC 3PH MOTOR ECP44252T-4

Catalog Number:  ECP44252T-4 - FREE Ground Shipping in USA
Description:  250HP,3600RPM,449TS,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  2696 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
FL AMPS: 269
BEARING-DRIVE-END: 6313
BEARING-OPP-DRIVE-END: 6313
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.8
EFFICIENCY-1: 96.3
EFFICIENCY-2: 95.4
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP44252T-4
SPEC. NUMBER: P44G5913
AMBIENT-TEMPERATURE: 40
HERTZ: 60
HORSEPOWER: 250
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 3570
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 90.4
POWER-FACTOR-CORRECTION CAPAC: 28.0
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
FRAME: 449TS

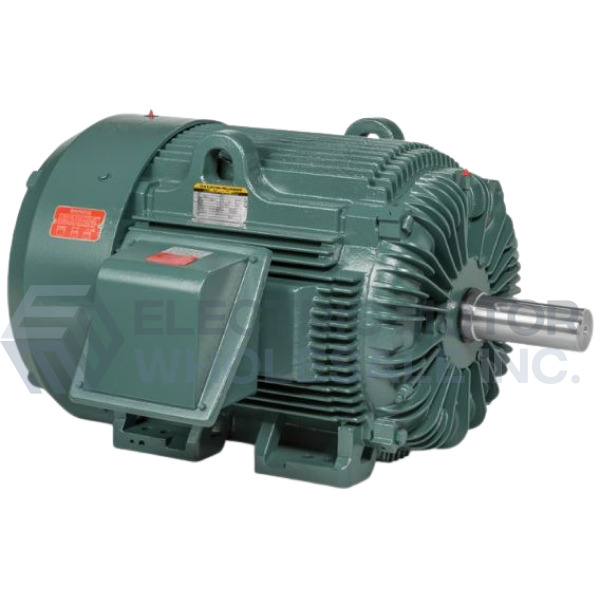

250HP BALDOR 3600RPM 449TS TEFC 3PH MOTOR ECP44252T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP44252T-4
Stock # ECP44252T-4
Price: $20,028.00
Compare At: $36,560.00
