200HP BALDOR 1785RPM 447T TEFC 3PH MOTOR ECP4407TS-4

Catalog Number:  ECP4407TS-4 - FREE Ground Shipping in USA
Description:  200HP,1785RPM,447T,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  2573 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
AMBIENT-TEMPERATURE: 40
FL AMPS: 223
BEARING-DRIVE-END: 6318
BEARING-OPP-DRIVE-END: 6318
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 96.2
EFFICIENCY-1: 96.5
EFFICIENCY-2: 95.4
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP4407TS-4
FRAME: 447TS
HERTZ: 60
HORSEPOWER: 200
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1785
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 87.3
POWER-FACTOR-CORRECTION CAPAC: 32
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPEC. NUMBER: P44G5902
TYPE: P
VOLTAGE: 460

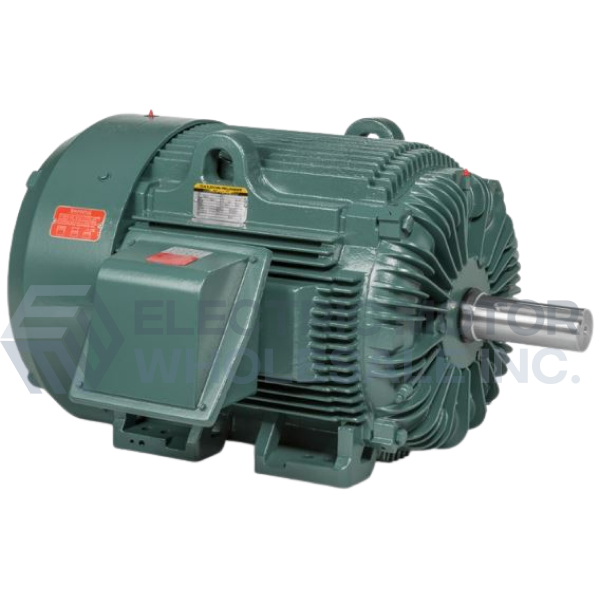

200HP BALDOR 1785RPM 447T TEFC 3PH MOTOR ECP4407TS-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4407TS-4
Stock # ECP4407TS-4
Price: $13,178.00
Compare At: $24,056.00
