200HP BALDOR 1785RPM 447T TEFC 3PH MOTOR ECP4407T-4

Catalog Number:  ECP4407T-4
Description:  200HP,1785RPM,447T,TEFC,3PH,60HZ,PREMIUM
Ship Weight:  2545 lbs.

APPLICATIONS: Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
FL AMPS: 223
BEARING-DRIVE-END: 6318
BEARING-OPP-DRIVE-END: 6318
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 96.2
EFFICIENCY-1: 96.5
EFFICIENCY-2: 95.4
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP4407T-4
SPEC. NUMBER: P44G5900
AMBIENT-TEMPERATURE: 40
HERTZ: 60
HORSEPOWER: 200
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1785
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 87
POWER-FACTOR-CORRECTION CAPAC: 32.0
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
FRAME: 447T

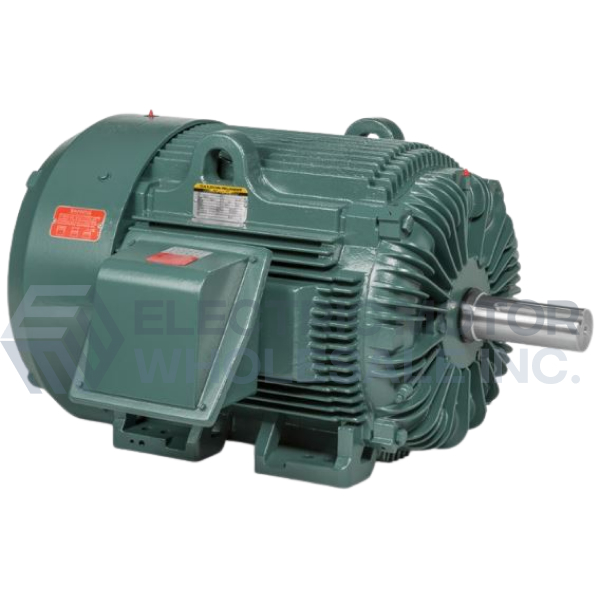

200HP BALDOR 1785RPM 447T TEFC 3PH MOTOR ECP4407T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4407T-4
Stock # ECP4407T-4
Price: $13,793.00
Compare At: $24,056.00
