60HP BALDOR 1185RPM 404T TEFC 3PH MOTOR ECP4403T

Catalog Number:  ECP4403T
Description:  60HP,1185RPM,404T,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  1281 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
FL AMPS: 138/69
BEARING-DRIVE-END: 6316
BEARING-OPP-DRIVE-END: 6316
BRG-DE-AFBMA: 80BC03J30X
BRG-ODE-AFBMA: 80BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95
EFFICIENCY-1: 95.2
EFFICIENCY-2: 94.5
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP4403T
SPEC. NUMBER: P40G274
AMBIENT-TEMPERATURE: 40
HERTZ: 60
HORSEPOWER: 60
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1185
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 86
POWER-FACTOR-CORRECTION CAPAC: 12.5
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 404T
60HP BALDOR 1185RPM 404T TEFC 3PH MOTOR ECP4403T

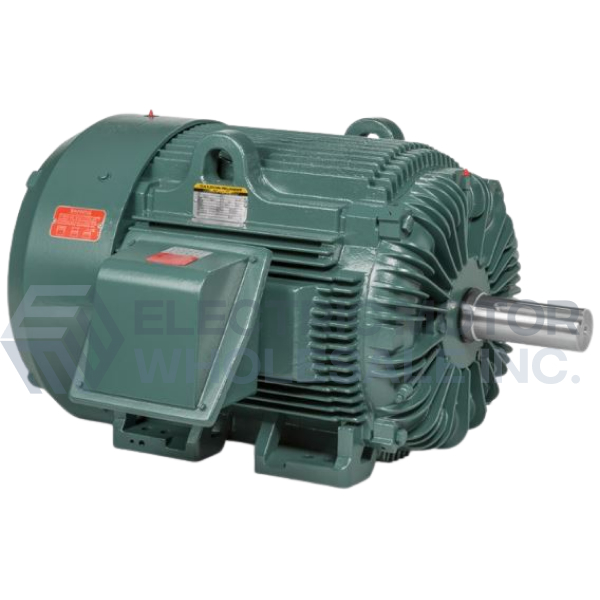

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4403T
Stock # ECP4403T
Price: $7,699.00
Compare At: $14,128.00
