75HP BALDOR 3555RPM 365TS TEFC 3PH MOTOR ECP4313T

Catalog Number:  ECP4313T
Description:  75HP,3555RPM,365TS,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  1004 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
FL AMPS: 161/80.7
BEARING-DRIVE-END: 6313
BEARING-OPP-DRIVE-END: 6313
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95
EFFICIENCY-1: 95.4
EFFICIENCY-2: 94.5
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP4313T
SPEC. NUMBER: P36G402
AMBIENT-TEMPERATURE: 40
HERTZ: 60
HORSEPOWER: 75
INSULATION CLASS: F
KVA-CODE: F
SPEED [rpm]: 3555
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 92
POWER-FACTOR-CORRECTION CAPAC: 5.0
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 365TS

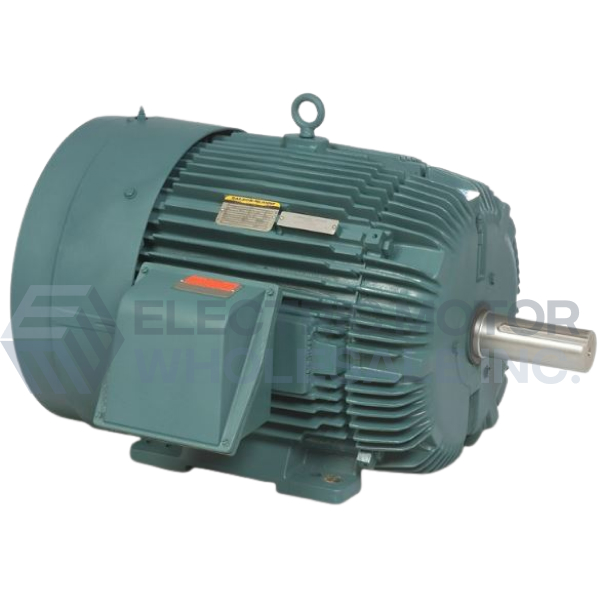

75HP BALDOR 3555RPM 365TS TEFC 3PH MOTOR ECP4313T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4313T
Stock # ECP4313T
Price: $6,354.00
Compare At: $11,661.00
