40HP BALDOR 1190RPM 364T TEFC 3PH MOTOR ECP4308T

Catalog Number:  ECP4308T
Description:  40HP,1190RPM,364T,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  918 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
FL AMPS: 98.8/49.4
BEARING-DRIVE-END: 6313
BEARING-OPP-DRIVE-END: 6313
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 94.1
EFFICIENCY-1: 94.3
EFFICIENCY-2: 93.6
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: ECP4308T
SPEC. NUMBER: P36G3314
AMBIENT-TEMPERATURE: 40
HERTZ: 60
HORSEPOWER: 40
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1190
MOTOR-WEIGHT: --
PHASE: 3
POWER-FACTOR: 80.5
POWER-FACTOR-CORRECTION CAPAC: 12.0
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 364T

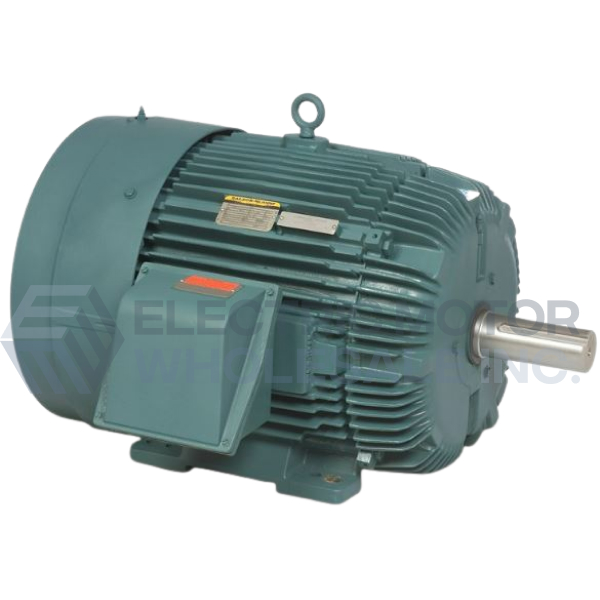

40HP BALDOR 1190RPM 364T TEFC 3PH MOTOR ECP4308T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4308T
Stock # ECP4308T
Price: $5,291.00
Compare At: $9,710.00
