30HP BALDOR 1180RPM 326T TEFC 3PH MOTOR ECP4117T-4

Catalog Number:  ECP4117T-4
Description:  30HP,1180RPM,326T,TEFC,3PH,60HZ,CHEM DUTY,PREMIUM
Ship Weight:  633 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
SPEC. NUMBER: 12E916Y453
CATALOG NUMBER: ECP4117T-4
FL AMPS: 39
208V AMPS: --
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6312
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 93
ENCLOSURE: TEFC
FRAME: 326T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1180
OUTPUT [hp]: 30
PHASE: 3
POWER-FACTOR: 78
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 460

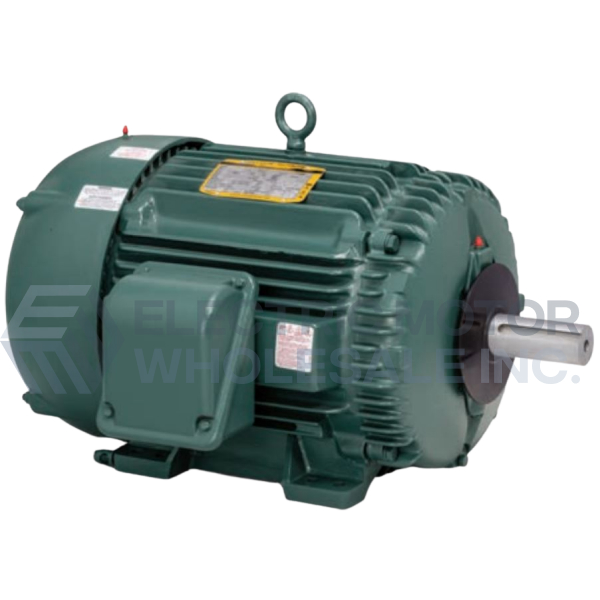

30HP BALDOR 1180RPM 326T TEFC 3PH MOTOR ECP4117T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4117T-4
Stock # ECP4117T-4
Price: $4,246.00
