40HP BALDOR 1775RPM 324T TEFC 3PH MOTOR ECP4110T

Catalog Number:  ECP4110T
Description:  40HP,1775RPM,324T,TEFC,3PH,60HZ,CHEM DUTY,SUPER-E
Ship Weight:  618 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
SPEC. NUMBER: 12E916X277G1
CATALOG NUMBER: ECP4110T
FL AMPS: 92/46
208V AMPS: 99
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6312
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 94.5
ENCLOSURE: TEFC
FRAME: 324T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1775
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 86
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460
40HP BALDOR 1775RPM 324T TEFC 3PH MOTOR ECP4110T

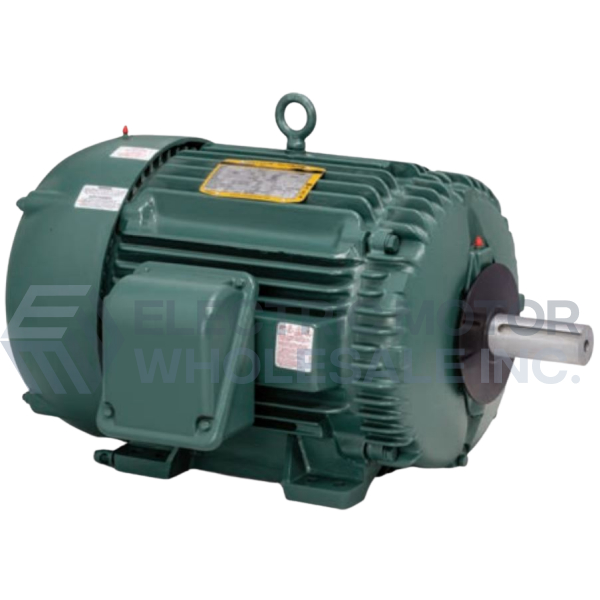

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: ECP4110T
Stock # ECP4110T
Price: $3,261.00
Compare At: $5,984.00
