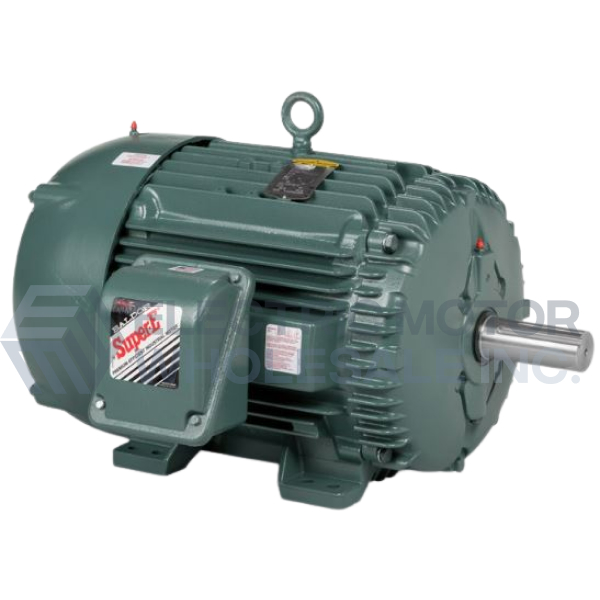

25HP BALDOR 1770RPM 284T 3PH XEX SEVERE DUTY SUPER-E MOTOR ECP4103T

25HP BALDOR 1770RPM 284T 3PH XEX SEVERE DUTY SUPER-E MOTOR ECP4103T

Picture is for reference only.

Part Number:

ECP4103T

Model/Spec Number:

10H292Z624G2

Manufacturer:

ABB/Baldor

Manufacturer Part Number:

ECP4103T
ECP4103T BALDOR 25HP XEX SEVERE DUTY SUPER-E Motor designed for Petro-chemical plants, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against severe environmental corrosion.
MSRP: $6,055.00

Regular Price

USD

$

4,561

43

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

431 lbs

Dimensions:

27 x 34 x 24 inches

HS Code:

8501.52.8040

UPC:

781568289877

Technical Details

Brand:

Baldor

Application:

Severe Duty

Output HP:

25

Output KW:

18.5

Output RPM:

1770

Frame Size NEMA:

284T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

ECP4103T-InfoPacket.pdf

APPLICATIONS: Petro-chemical oil & gas plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • Re-greaseable bearings
  • Corrosion resistant epoxy finish
  • Inverter ready nameplate
  • Division 2, Class I, Groups A, B, C, D markings on nameplate
  • Oversized rotatable cast iron conduit box
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • 304 Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
