5HP BALDOR 1750RPM 184T TEFC 3PH AEGIS SUPER-E BRAKE MOTOR EBM3615T-SG

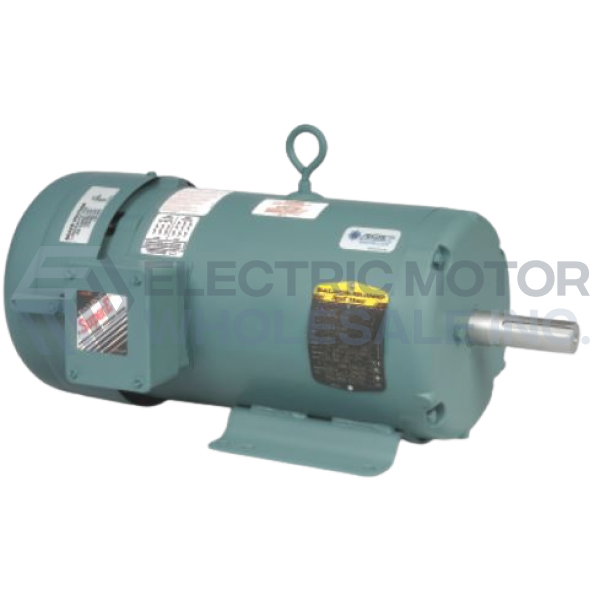

Picture is for reference only.

Part Number:

EBM3615T-SG

Model/Spec Number:

36N144S268G1

Manufacturer:

Baldor Obsolete Motors

EBM3615T-SG BALDOR 5HP Short Series Brake Motor with Internal AEGIS Shaft Ground is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

102 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501524000

UPC:

781568543207

Technical Details

Specifications

Brand:	Baldor
Application:	Brake Motor
Output HP:	5
Output KW:	3.7
Output RPM:	1750
Frame Size NEMA:	184T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP44
Voltage:	208-230/460

Documentation

EBM3615T-SG-InfoPacket

Additional Information

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

Class H insulated with AEGIS shaft grounding ring installed internally
UL/CSA recognized and CE certified
Dodge short series brakes are spring set, magnetically released power off type brakes and integrally mounted in the motor for the most compact design
Brakes are single phase with built-in rectifier to DC
Brakes have a manual release lever
SSB brake motors have a special base with 56, 143 and 145 slots used on OEM conveyors
Super-E NEMA Premium efficiency
3 year warranty
