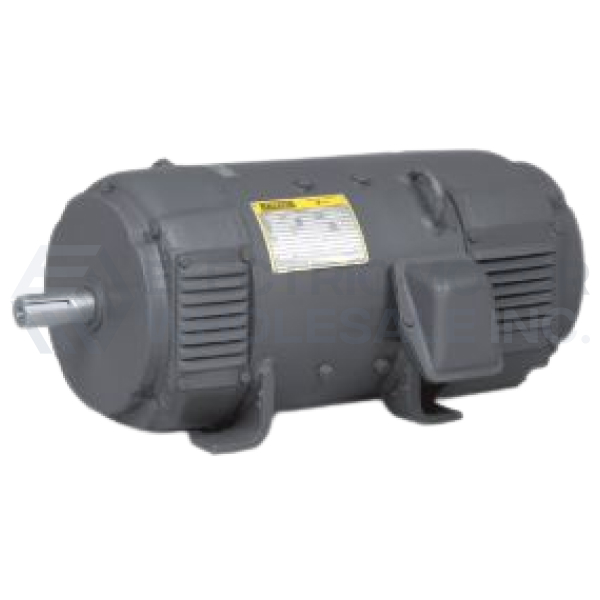

33KW BALDOR 1750RPM 328AT DPFG 230V GENERATOR DMG2333
33KW BALDOR 1750RPM 328AT DPFG 230V GENERATOR DMG2333
Part Number:
DMG2333Model/Spec Number:
T32S8013Manufacturer:
ABB/BaldorTechnical Details
Specifications
Application: | Lifting Magnet Generator |
Output KW: | 33.0 |
Output RPM: | 1750 |
Frame NEMA: | 328AT |
Mount NEMA: | With Base |
Input Voltage DC: | 230 |
Full Load Amps: | 144.00 |
Field Voltage: | 230 |
Winding: | Compound Wound |
Enclosure NEMA: | DPFG |
Documentation
Additional Information
APPLICATIONS: Crane mounted lifting magnets designed for use recyclers and steel mills.
FEATURES:
- Heavy duty steel frame
- Cast iron endplates
- Class H insulation with Class F temperature rise
- Precision brush holders
- Constant force brush springs
- Double sealed ball bearings
- Compound wound with drooping voltage characteristics
- DPFG enclosure
- Weather resistant paint
- F-2 conduit box
- CDMG generators have C-face and base mounting for hydraulic pump or PTO mounting
