5HP BALDOR 1725RPM 213TZ TEFC 1PH MOTOR DEL3708TM

5HP BALDOR 1725RPM 213TZ TEFC 1PH MOTOR DEL3708TM

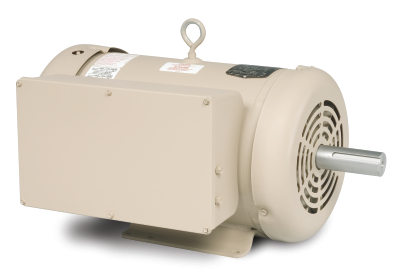

Picture is for reference only.

Part Number:

DEL3708TM

Model/Spec Number:

37M342W660

Manufacturer:

Baldor Obsolete Motors
BALDOR DEL3708TM, 5HP Single Phase Dairy/Vacuum Pump Motor is engineered for use with vacuum pumps used in the dairy industry.

Item Discontinued

Click below to request an agent review potential options.

Weight:

147 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.40.6040

Technical Details

Application:

Dairy/Vacuum Pump

Output HP:

5

Output KW:

3.7

Output RPM:

1725

Frame NEMA:

213TZ

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

230

Frequency (Hz):

60

DEL3708TM-InfoPacket

APPLICATIONS: Engineered for use with vacuum pumps used in the dairy industry.

FEATURES:

  • Manual thermal overload protected
  • Heavy gauge steel frame
  • 1.15 Service Factor
  • 50°C ambient-continuous duty
  • Farm duty epoxy paint
