7.5HP BALDOR 1750RPM 2113ATZ TEFC 500VDC MOTOR D5507R

Catalog Number:  D5507R
Description:  7.5HP,1750/2300RPM,TEFC,SC2113ATZ,500VDC,SHUNT WOUND
Ship Weight:  360 lbs.

APPLICATIONS: Designed for use with metals, paper, web processes, extruders, cranes, conveyors, packaging, printing, and machine tools.

FEATURES:

  • Field amps at 25*C
  • Field amps for high voltage connection
  • Unique laminated square frame for improved commutation on rectified power supplies
  • The square configuration allows for increased rating per frame size
  • Class F rated insulation system
  • Service Line brushes with convenient wear indicating reference lines
  • Positive Lubrication System for longer bearing and motor life
  • F-1 mounting unless otherwise specified
  • Tach adaptable with thermostat
Catalog Number: D5507R
Specification Number: T21S302
Horsepower: 7.5
Armature Voltage: 500
Field Voltage: 300
Full Load Amps - Armature: 13.50
Full Load Amps - Field: 1.41
RPM: 1750
Frame Size: SC 2113ATZ
Service Factor: 1.0
Rating: N/A
Insulation Class: F
Form Factor: N/A
Enclosure: TEFC
Baldor Type: N/A
DE Bearing: 50BC03J30X
ODE Bearing: 45BC02J30X
Electrical Specification Number: N/A
Mechanical Specification Number: N/A
Base: N/A
Mounting: F1
Tach Mounting Kit: N/A
Blower Kit: N/A
Filter Kit: N/A
Recommended SCR Control: N/A

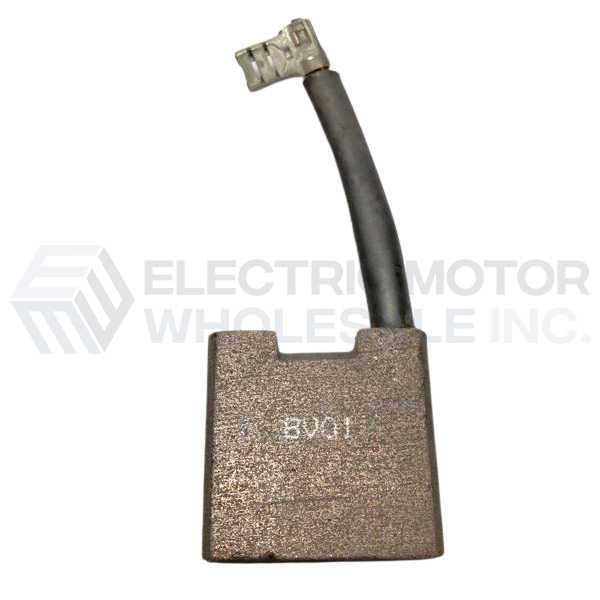

Brush Part Number: 419904-51E

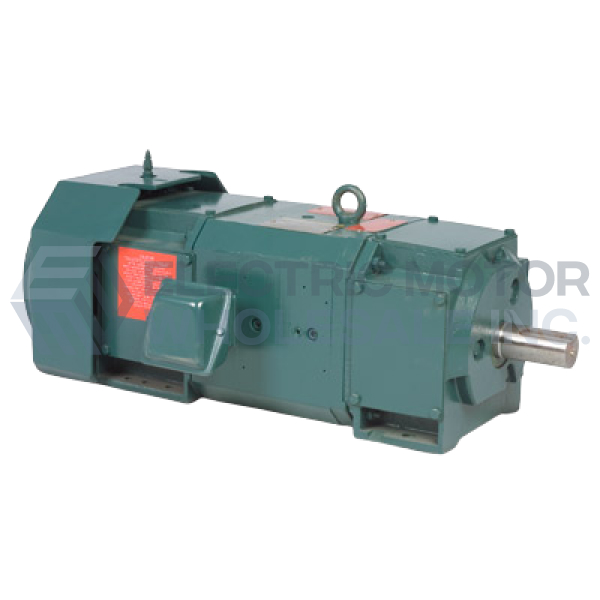

7.5HP BALDOR 1750RPM 2113ATZ TEFC 500VDC MOTOR D5507R
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: D5507R
Stock # D5507R
Price: $9,019.00
Compare At: $17,059.00
