200HP BALDOR 1150RPM 3613ATZ DPG-FV 500VDC MOTOR D51200R-BV

Catalog Number:  D51200R-BV
Description:  200HP,1150/2000RPM,DPG-FV,C3613ATZ,500VDC,SHUNT WOUND
Ship Weight:  1850 lbs.

APPLICATIONS: Designed for use with metals, printing, extruders, cranes, conveyors, machine tools.

FEATURES:

  • Field amps at 25*C
  • Laminated square frame for improved commutation
  • Tach adaptable with thermostat
Catalog Number: D51200R-BV
Specification Number: T36S1325
Horsepower: 200.00
Armature Voltage: 500
Field Voltage: 300
Full Load Amps - Armature: 323.00
Full Load Amps - Field: 10.78
RPM: 1150
Frame Size: C 3613ATZ
Service Factor: 1.0
Rating: N/A
Insulation Class: F
Form Factor: N/A
Enclosure: DPFV
Baldor Type: N/A
DE Bearing: 95BC02J30X
ODE Bearing: 80BC02J30X
Electrical Specification Number: N/A
Mechanical Specification Number: N/A
Base: N/A
Mounting: F2
Tach Mounting Kit: N/A
Blower Kit: N/A
Filter Kit: N/A
Recommended SCR Control: N/A
Brush Part Number: 419904-52AB

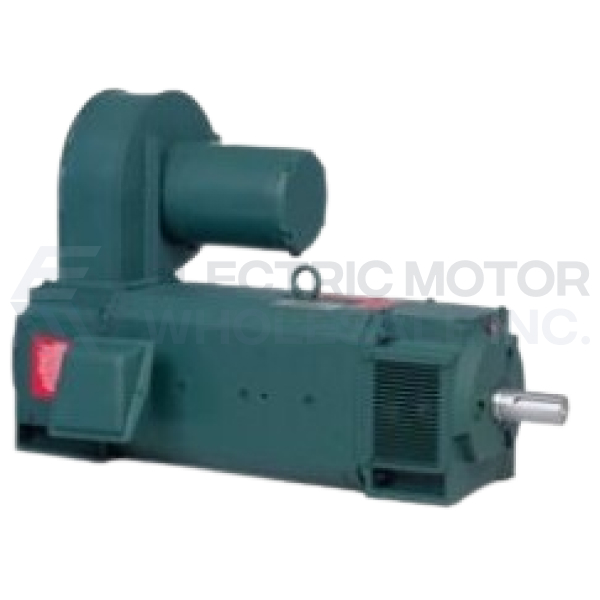

200HP BALDOR 1150RPM 3613ATZ DPG-FV 500VDC MOTOR D51200R-BV
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: D51200R-BV
Stock # D51200R-BV
Price: $56,253.00
Compare At: $106,410.00
