500HP BALDOR 1750RPM 5010AT DPBV 500VDC MOTOR D50500P-BV

BALDOR Model Number:  D50500P-BV - FREE Ground Shipping in USA
Description:  500HP,1750/1900RPM,5010AT,DPBV,500VDC,SHUNT
Ship Weight:  4170 lbs.

APPLICATIONS: Designed for use with conveyors, plastic extruders, packaging machinery and other constant torque applications for DC SCR motors.

FEATURES:

  • Field amps are for 300V connection
  • Includes thermostat on interpole
  • Class F insulation system resistant to dirt, carbon, dust and moisture
  • High dielectric stability
  • Low moment of inertia armature for fast response
  • Constant pressure brush springs and longer brushes for reduced maintenance
  • Includes grease fittings and reliefs for bearing maintenance SCR drive motors for use with 3 phase rectified power
  • Power code C or M-G sets
  • Maximum RPM by field weakening
  • Provisions for tach mounting
  • Blower-ventilated, includes filter
Catalog Number: D50500P-BV
Specification Number: 97A193-2639
Horsepower: 500.00
Armature Voltage: 500
Field Voltage: 150/300
Full Load Amps - Armature: 788.00
Full Load Amps - Field: 17.64/8.82
RPM: 1750/1900
Frame Size: 5010AT
Service Factor: 1.00
Rating: 40C
Insulation Class: F
Form Factor: N/A
Enclosure: DPBV
Baldor Type: N501
DE Bearing: 6218
ODE Bearing: 6218
Electrical Specification Number: 50102639
Mechanical Specification Number: 1227-1
Base: RG
Mounting: F1
Tach Mounting Kit: N/A
Blower Kit: N/A
Filter Kit: N/A
Recommended SCR Control: N/A
Brush Part Number: 50034-2

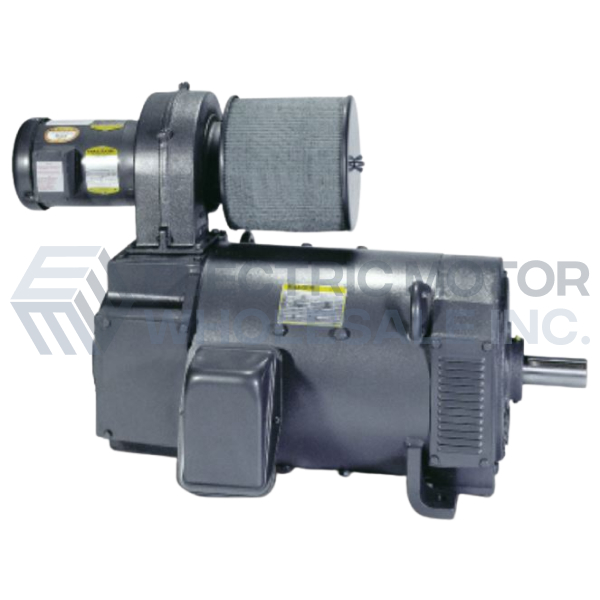

500HP BALDOR 1750RPM 5010AT DPBV 500VDC MOTOR D50500P-BV
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: D50500P-BV
Stock # D50500P-BV
