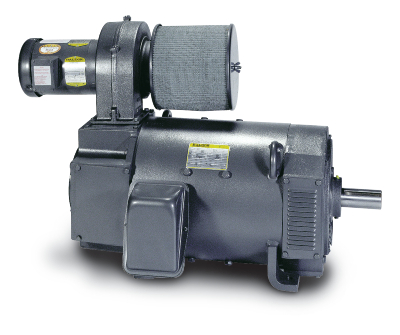

300HP BALDOR 1750RPM 506AT DPBV 500V MOTOR D50300P-BV
|BALDOR Model Number:||D50300P-BV - FREE Ground Shipping in USA|
|Ship Weight:||2640 lbs.|
APPLICATIONS: Designed for use with conveyors, plastic extruders, packaging machinery and other constant torque applications for DC SCR motors.
- Field amps are for 300V connection
- Includes thermostat on interpole
- Class F insulation system resistant to dirt, carbon, dust and moisture
- High dielectric stability
- Low moment of inertia armature for fast response
- Constant pressure brush springs and longer brushes for reduced maintenance
- Includes grease fittings and reliefs for bearing maintenance SCR drive motors for use with 3 phase rectified power
- Power code C or M-G sets
- Maximum RPM by field weakening
- Provisions for tach mounting
- Blower-ventilated, includes filter
|Full Load Amps - Armature:||478.00|
|Full Load Amps - Field:||9.07|
|Electrical Specification Number:||5062971|
|Mechanical Specification Number:||1336-6|
|Tach Mounting Kit:||N/A|
|Recommended SCR Control:||N/A|
|Brush Part Number:||50034-2|
