200HP BALDOR 1750RPM 409AT DPBV 500VDC MOTOR D50200P-BV

BALDOR Model Number:  D50200P-BV - FREE Ground Shipping in USA
Description:  200HP,1750/1900RPM,409AT,DPBV,500VDC,SHUNT
Ship Weight:  1830 lbs.

APPLICATIONS: Designed for use with conveyors, plastic extruders, packaging machinery and other constant torque applications for DC SCR motors.

FEATURES:

  • Field amps are for 300V connection
  • Includes thermostat on interpole
  • Class F insulation system resistant to dirt, carbon, dust and moisture
  • High dielectric stability
  • Low moment of inertia armature for fast response
  • Constant pressure brush springs and longer brushes for reduced maintenance
  • Includes grease fittings and reliefs for bearing maintenance SCR drive motors for use with 3 phase rectified power
  • Power code C or M-G sets
  • Maximum RPM by field weakening
  • Provisions for tach mounting
  • Blower-ventilated, includes filter
Catalog Number: D50200P-BV
Specification Number: 96A041-2924
Horsepower: 200.00
Armature Voltage: 500
Field Voltage: 150/300
Full Load Amps - Armature: 311.00
Full Load Amps - Field: 11.14/5.57
RPM: 1750/1900
Frame Size: 409AT
Service Factor: 1.00
Rating: 40C
Insulation Class: F
Form Factor: N/A
Enclosure: DPBV
Baldor Type: N409
DE Bearing: 6214
ODE Bearing: 6213
Electrical Specification Number: 4092924
Mechanical Specification Number: 1336-5
Base: RG
Mounting: F1
Tach Mounting Kit: N/A
Blower Kit: N/A
Filter Kit: N/A
Recommended SCR Control: N/A
Brush Part Number: 40019-3

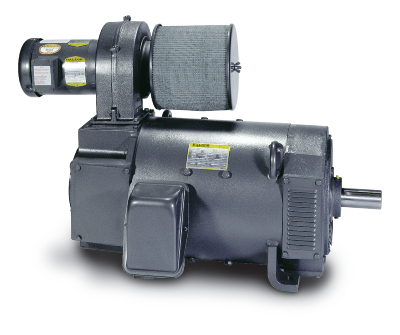

200HP BALDOR 1750RPM 409AT DPBV 500VDC MOTOR D50200P-BV
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: D50200P-BV
Stock # D50200P-BV
Price: $31,286.00
