1.5HP BALDOR 1140RPM 56C 3PH TEFC WASHDOWN MOTOR CWDM3557

1.5HP BALDOR 1140RPM 56C 3PH TEFC WASHDOWN MOTOR CWDM3557

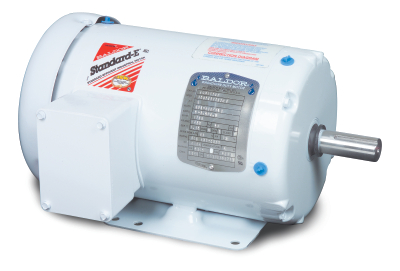

Picture is for reference only.

Part Number:

CWDM3557

Model/Spec Number:

35S587M899G1

Manufacturer:

Baldor Obsolete Motors
CWDM3557 BALDOR 1.5HP Washdown Totally Enclosed Motor is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

46 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501524000

UPC:

781568218419

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1140

Frame Size NEMA:

56C

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

CWDM3557-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

46 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501524000

UPC:

781568218419
