2HP BALDOR 3450RPM 56HCY TEFC 3PH WASHDOWN EPOXY MOTOR CWDM3555

2HP BALDOR 3450RPM 56HCY TEFC 3PH WASHDOWN EPOXY MOTOR CWDM3555

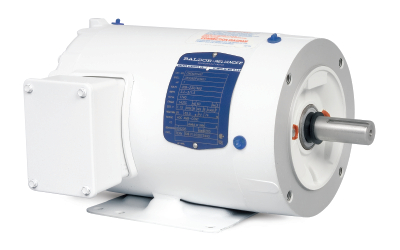

Picture is for reference only.

Part Number:

CWDM3555

Model/Spec Number:

34K942Y918G1

Manufacturer:

Baldor Obsolete Motors
CWDM3555 BALDOR 2HP 3PH WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

39 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501524000

UPC:

781568108604

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

2

Output KW:

1.5

Output RPM:

3450

Frame Size NEMA:

56HCY

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

CWDM3555-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
