1.5HP BALDOR 1735RPM 56C 3PH TEFC WASHDOWN MOTOR CWDM3554

BALDOR CWDM3554 has been superseded by CEWDM3554

Catalog Number:  CWDM3554
Description:  1.5HP,1735RPM,56C,TEFC,3PH,60HZ,WASHDOWN
Ship Weight:  36 lbs.
SPEC. NUMBER: 35H868P801G1
CATALOG NUMBER: CWDM3554
FL AMPS: 5-4.6/2.3
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 81.5
ENCLOSURE: TEFC
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1735
OUTPUT [hp]: 1.5
PHASE: 3
POWER-FACTOR: 74
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

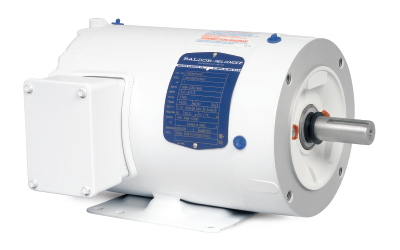

1.5HP BALDOR 1735RPM 56C 3PH TEFC WASHDOWN MOTOR CWDM3554
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CWDM3554
Stock # CWDM3554
