1.5HP BALDOR 3450RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR CWDM3550

1.5HP BALDOR 3450RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR CWDM3550

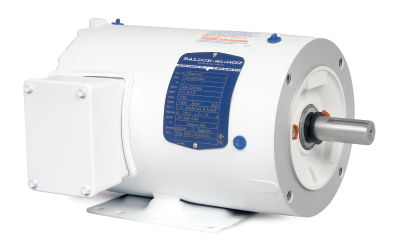

Picture is for reference only.

Part Number:

CWDM3550

Model/Spec Number:

35T964Y033G1

Manufacturer:

Baldor Obsolete Motors
CWDM3550 BALDOR 1.5HP 3PH EPOXY WASHDOWN ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

50 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501524000

UPC:

781568108581

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame Size NEMA:

56C

Mount NEMA:

C Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

208-230/460

CWDM3550-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
