1/2HP BALDOR 3450RPM 56C 3PH TENV CWDM3537

BALDOR Catalog Number:  CWDM3537
Description:  1/2HP,3450RPM,56C,TENV,3PH,60HZ,WASHDOWN
Ship Weight:  29 lbs.
SPEC. NUMBER: 35T964-1706G1
CATALOG NUMBER: CWDM3537
FL AMPS: 1.9-1.8/.9
208V AMPS: 1.9
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 70
ENCLOSURE: TENV
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 3450
OUTPUT [hp]: .5
PHASE: 3
POWER-FACTOR: 76
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
VOLTAGE: 208-230/460

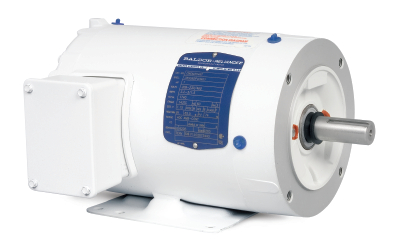

1/2HP BALDOR 3450RPM 56C 3PH TENV CWDM3537
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CWDM3537
Stock # CWDM3537
