2HP BALDOR 1425RPM 182TC XPFC MOTOR CL5027T-50

Catalog Number:  CL5027T-50
Description:  2HP,1425RPM,56C,XPFC,1PH,50HZ,EXPLOSION
Ship Weight:  118 lbs.

APPLICATIONS: Designed for a wide variety of applications including use with pumps, blowers, and valves.

FEATURES:

  • THESE EXPLOSION PROOF MOTORS ARE NOT SUITABLE FOR USE WITH ADJUSTABLE SPEED DRIVES. INVERTER DUTY EXPLOSION PROOF MOTORS MUST BE USED.
  • Corrosion resistant epoxy finish
  • Positively locked drive end bearing
  • U.L. approved cast conduit box-standard
  • 1.00 Service Factor
  • U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T3C
  • Rated for ±15% voltage variation

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty.

SPEC. NUMBER: 36G377X415
CATALOG NUMBER: CL5027T-50
FL AMPS: 23/11.5
208V AMPS: --
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 77
FRAME: 182TC
HERTZ: 50
INSULATION-CLASS: B
KVA-CODE: K
SPEED [rpm]: 1425
NAMEPLATE-SERIAL-NUMBER: --
OUTPUT [hp]: 2
PHASE: 1
POWER-FACTOR: 78
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
TEMP. CODE: T2C
VOLTAGE: 110/220

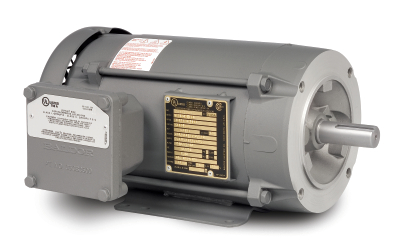

2HP BALDOR 1425RPM 182TC XPFC MOTOR CL5027T-50
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CL5027T-50
Stock # CL5027T-50
Price: $1,402.00
Compare At: $2,485.00
