3/4HP BALDOR 1725RPM 56C OPEN 1PH MOTOR CL1307

3/4HP BALDOR 1725RPM 56C OPEN 1PH MOTOR CL1307

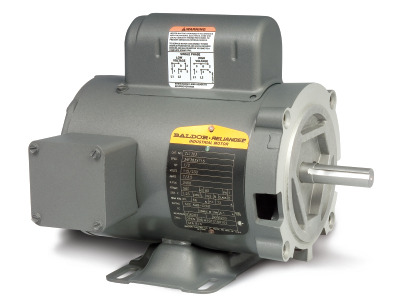

Picture is for reference only.

Part Number:

CL1307

Model/Spec Number:

34F383W198

Manufacturer:

Baldor Obsolete Motors
CL1307 BALDOR 3/4HP General purpose single phase electric motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

33 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501404040

UPC:

781568111000

Technical Details

Application:

General Purpose

Output HP:

3/4

Output KW:

0.40-0.59

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

OPEN

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

CL1307-InfoPacket

APPLICATIONS: Fans, blowers, compressors, tools, speed reducers.

FEATURES

  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
