7.5HP BALDOR 1770RPM 213TC 3PH TEFC WASHDOWN MOTOR CEWDM3710T

BALDOR CWDM3710T has been Superseded by CEWDM3710T

Catalog Number:  CEWDM3710T
Description:  7.5HP,1770RPM,213TC,TEFC,3PH,60HZ,WASHDOWN
Ship Weight:  132 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
SPEC. NUMBER: 37H887T859G1
CATALOG NUMBER: CEWDM3710T
FL AMPS: 18.8/9.4
208V AMPS: 21
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: TEFC
FRAME: 213TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: J
SPEED [rpm]: 1770
OUTPUT [hp]: 7.5
PHASE: 3
POWER-FACTOR: 81
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

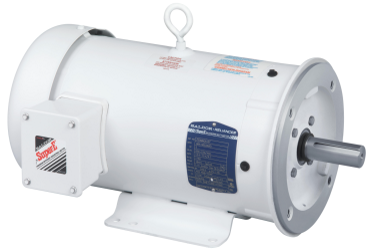

7.5HP BALDOR 1770RPM 213TC 3PH TEFC WASHDOWN MOTOR CEWDM3710T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEWDM3710T
Stock # CEWDM3710T
Price: $1,303.00
Compare At: $2,314.00
