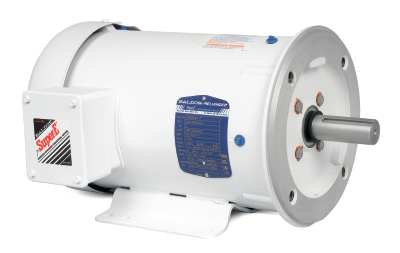

7.5HP BALDOR 3520RPM 213TC TEFC 3PH SUPER-E WASHDOWN EPOXY MOTOR CEWDM3709T

7.5HP BALDOR 3520RPM 213TC TEFC 3PH SUPER-E WASHDOWN EPOXY MOTOR CEWDM3709T

Picture is for reference only.

Part Number:

CEWDM3709T

Model/Spec Number:

37H887L869G1

Manufacturer:

ABB/Baldor
CEWDM3709T BALDOR 7.5HP 3PH SUPER-E WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $4,454.00

Regular Price

USD

$

3,200

94

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

143 lbs

Dimensions:

16 x 26 x 18 inches

HS Code:

8501.52.4000

UPC:

781568457481

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

7.5

Output KW:

5.5

Output RPM:

3520

Frame Size NEMA:

213TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

CEWDM3709T-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
