5HP BALDOR 1160RPM 215TC 3PH TEFC WASHDOWN MOTOR CEWDM3708T

BALDOR CWDM3708T has been Superseded by CEWDM3708T

Catalog Number:  CEWDM3708T
Description:  5HP,1160RPM,215TC,TEFC,3PH,60HZ,SUPER-E,EPOXY WASHDOWN
Ship Weight:  185 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
SPEC. NUMBER: 37G815S838G1
CATALOG NUMBER: CEWDM3708T
FL AMPS: 15.3-14.6/7.3
208V AMPS: 15.3
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 89.5
ENCLOSURE: TEFC
FRAME: 215TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1160
OUTPUT [hp]: 5
PHASE: 3
POWER-FACTOR: 72
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

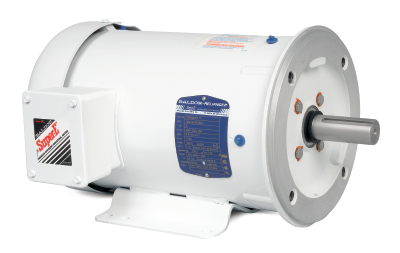

5HP BALDOR 1160RPM 215TC 3PH TEFC WASHDOWN MOTOR CEWDM3708T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEWDM3708T
Stock # CEWDM3708T
Price: $1,266.00
Compare At: $2,249.00
