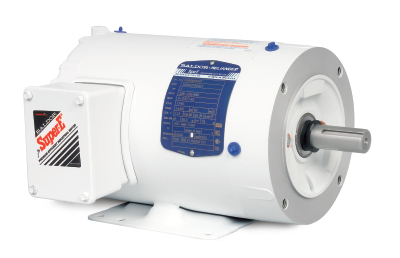

1.5HP BALDOR 1755RPM 56C TENV 3PH SUPER-E WASHDOWN EPOXY MOTOR CEWDM3554

1.5HP BALDOR 1755RPM 56C TENV 3PH SUPER-E WASHDOWN EPOXY MOTOR CEWDM3554


Part Number:

CEWDM3554

Model/Spec Number:

35S588G178G1

Manufacturer:

ABB/Baldor
CEWDM3554 BALDOR 1.5HP 3PH SUPER-E WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $1,798.00

Regular Price

USD

$

1,292

16

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

50 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.52.4000

UPC:

781568778104

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1755

Frame Size NEMA:

56C

Mount NEMA:

C Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

230/460

CEWDM3554-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • 5/8" shaft output diameter
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
