7.5HP BALDOR 1770RPM 213TC TEFC 3PH MOTOR CEUHM3710T-G
7.5HP BALDOR 1770RPM 213TC TEFC 3PH MOTOR CEUHM3710T-G

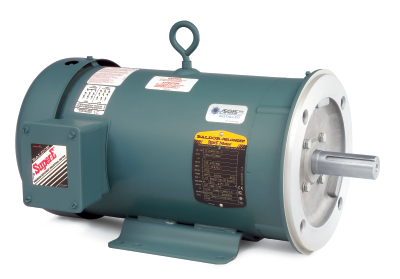

Picture is for reference only.
Part Number:
CEUHM3710T-GManufacturer:
Baldor Obsolete MotorsManufacturer Part Number:
CEUHM3710T-GThis is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
13 x 20 x 13 inchesTechnical Details
Specifications
Application: | AEGIS, Syncronous PM |
Output HP: | 7.5 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 213-5TC |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Voltage: | 208-230/460 |
Frequency (Hz): | 60 |
Efficiency: | IE3: Premium |
Thermal Protection: | None |
Documentation
Additional Information
| Catalog Number: | CEUHM3710T-G |
| Description: | 7.5HP,1770RPM,213TC,TEFC,3PH,60HZ,SYNCHRONOUS PM |
| Ship Weight: | 127 lbs. |
APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
FEATURES:
- Class H insulated with AEGIS shaft grounding ring installed internally
- UL/CSA recognized and CE certified
- Super-E with NEMA Premium efficiency
- Inverter Ready
- 143-145TCY frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
- 140 frames have low profile F3 top-mounted conduit box
- 3 year warranty
| SPEC. NUMBER: | CEUHM3710T-G |
| FL AMPS: | 21-18.8/9.4 |
| 208V AMPS: | 21 |
| BEARING-DRIVE-END: | 6307 |
| BEARING-OPP-DRIVE-END: | 6206 |
| CATALOG NUMBER: | CEUHM3710T-G |
| DESIGN CODE: | A |
| DOE-CODE: | 010A |
| FL EFFICIENCY: | 91.7 |
| ENCLOSURE: | TEFC |
| FRAME: | 213TC |
| HERTZ: | 60 |
| INSULATION-CLASS: | H |
| KVA-CODE: | J |
| SPEED [rpm]: | 1770 |
| OUTPUT [hp]: | 7.5 |
| PHASE: | 3 |
| POWER-FACTOR: | 81 |
| RATING: | 40C AMB-CONT |
| SERIAL-NUMBER: | -- |
| SERVICE FACTOR: | 1.15 |
| VOLTAGE: | 208-230/460 |
