40HP BALDOR 1775RPM 324TC TEFC 3PH MOTOR CEM4110T

Catalog Number:  CEM4110T
Description:  40HP,1775RPM,324TC,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  586 lbs.

APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy gauge steel and cast iron frames
  • 2 1/8" keyed output shaft
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
208V AMPS: 102
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6311
CUSTOMER-PART-NUMBER: --
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 94.1
ENCLOSURE: TEFC
FRAME: 324TC
GREASE: POLYREX EM
HERTZ: 60
CATALOG NUMBER: CEM4110T
SPEC. NUMBER: 12C052Y276G1
INSULATION-CLASS: F
KVA-CODE: H
MAX. SPACE HEATER TEMP.: --
SPEED [rpm]: 1775
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 82
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
FL AMPS: 96/48
40HP BALDOR 1775RPM 324TC TEFC 3PH MOTOR CEM4110T

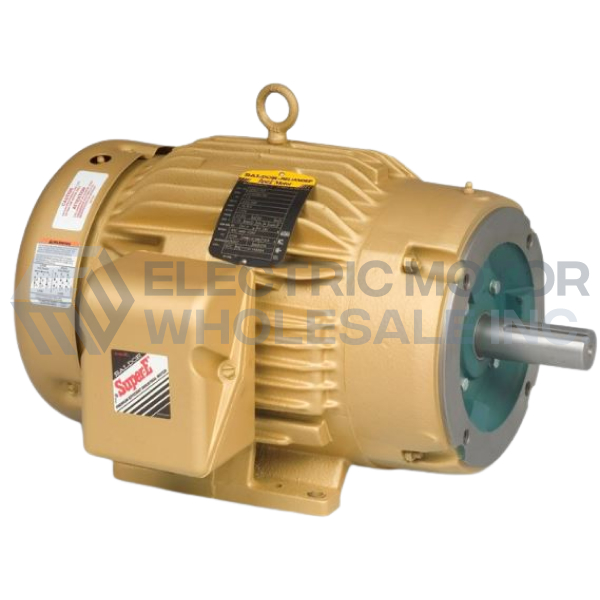

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEM4110T
Stock # CEM4110T
Price: $3,549.00
Compare At: $6,566.00
