10HP BALDOR 1760RPM 215TC TEFC 3PH MOTOR CEM3774T

Catalog Number:  CEM3774T
Description:  10HP,1760RPM,215TC,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  195 lbs.

APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy gauge steel and cast iron frames
  • 1 3/8" keyed output shaft
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
SPEC. NUMBER: 07H058Y179G1
CATALOG NUMBER: CEM3774T
FL AMPS: 24.4/12.2
208V AMPS: --
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: TEFC
FRAME: 215TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1760
OUTPUT [hp]: 10
PHASE: 3
POWER-FACTOR: 83
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

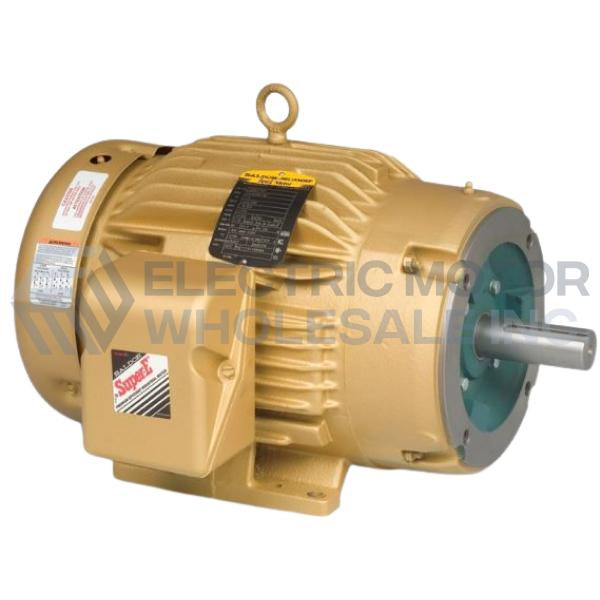

10HP BALDOR 1760RPM 215TC TEFC 3PH MOTOR CEM3774T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEM3774T
Stock # CEM3774T
Price: $1,018.00
Compare At: $1,883.00
