10HP BALDOR 1770RPM 215TC OPSB 3PH MOTOR CEM3313T

Catalog Number:  CEM3313T
Description:  10HP,1770RPM,215TC,OPSB,3PH,60HZ,SUPER-E
Ship Weight:  133 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • 36 Month warranty
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
SPEC. NUMBER: 37B102T853G1
CATALOG NUMBER: CEM3313T
FL AMPS: 26-25/12.5
208V AMPS: 26
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 91.7
ENCLOSURE: OPSB
FRAME: 215TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1770
OUTPUT [hp]: 10
PHASE: 3
POWER-FACTOR: 82
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460
10HP BALDOR 1770RPM 215TC OPSB 3PH MOTOR CEM3313T

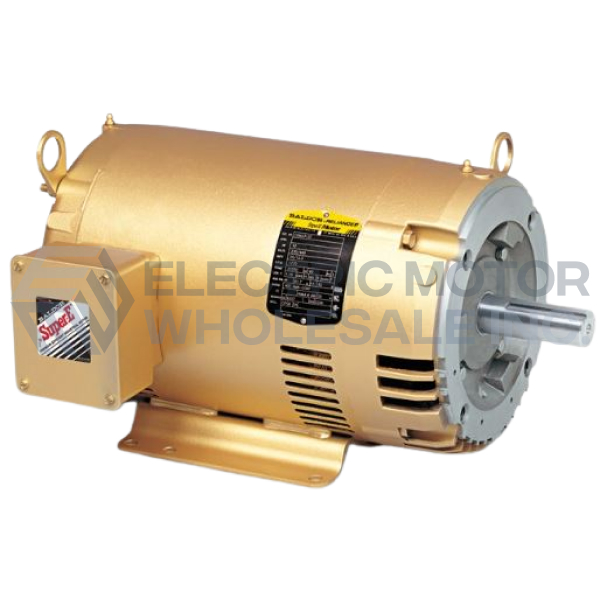

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: CEM3313T
Stock # CEM3313T
Price: $992.00
Compare At: $1,834.00
