15HP BALDOR 1765RPM 254TC TEFC 3PH MOTOR CEM2333T

Catalog Number:  CEM2333T
Spec Number:  09C102Z910G1
Description:  15HP,1765RPM,254TC,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  269 lbs.

APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy gauge steel and cast iron frames
  • 1 5/8" keyed output shaft
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
SPEC. NUMBER: 09C102Z910G1
CATALOG NUMBER: CEM2333T
FL AMPS: 36.2/18.1
208V AMPS: 38.0
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 92.4
ENCLOSURE: TEFC
FRAME: 254TC
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: H
SPEED [rpm]: 1765
OUTPUT [hp]: 15
PHASE: 3
POWER-FACTOR: 83
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

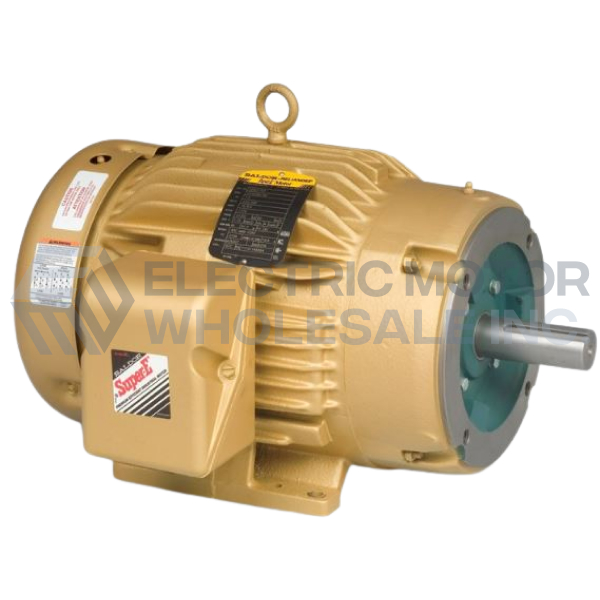

15HP BALDOR 1765RPM 254TC TEFC 3PH MOTOR CEM2333T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEM2333T
Stock # CEM2333T
Price: $1,466.00
Compare At: $2,889.00
